Surpass Hobby 3650 3250KV Brushless Motor and Smart Waterproof 45A ESC Combo for 1/10 RC Off-Road Truck RC CAR

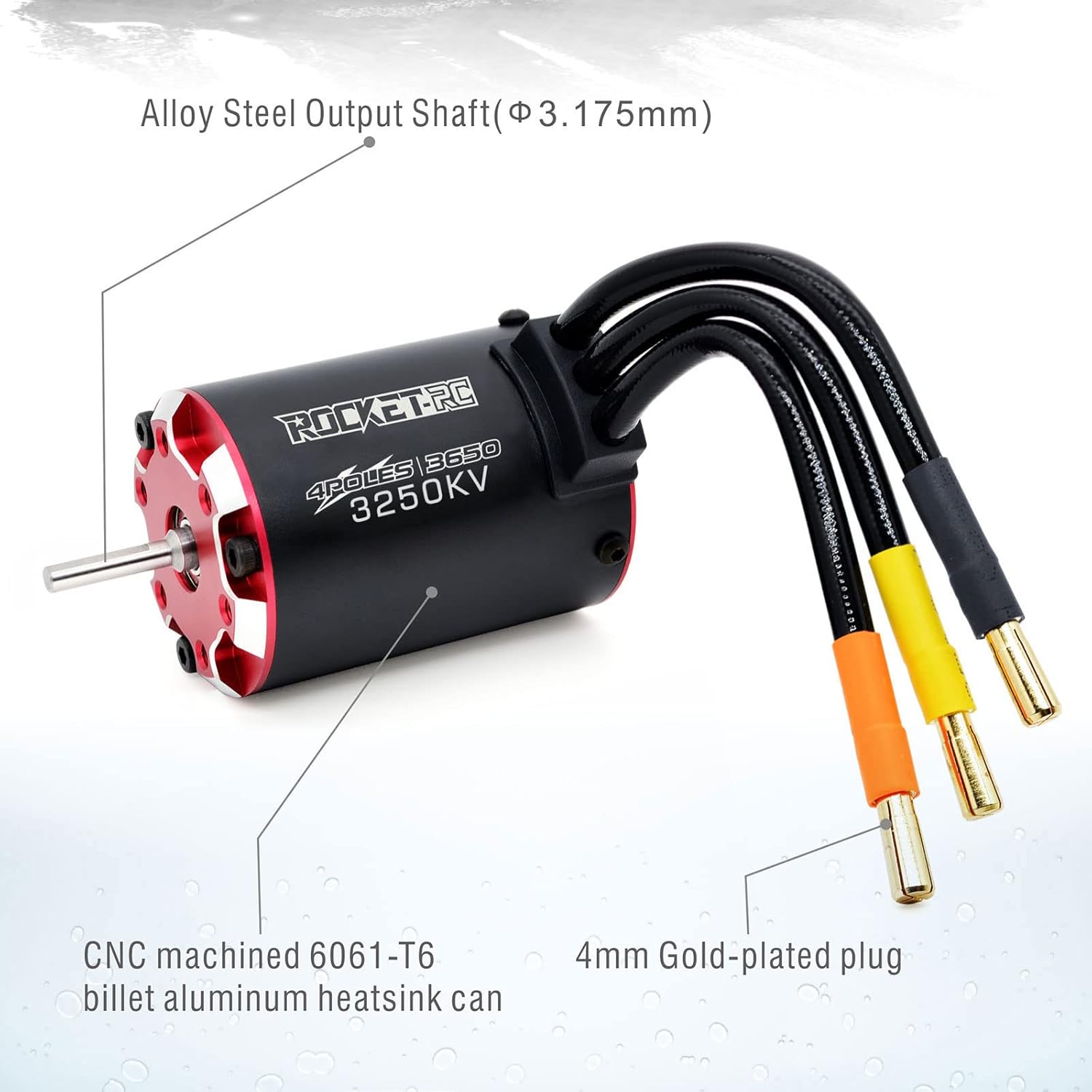

Specification:Item Type: Supsonic 3650 Brushless MotorMaterial: Aluminum Alloy + Copper + PlasticColor: BlackMotor Model: 3650 Brushless MotorKV (RPM/Volt): 3250KVWattage: 900WMaximum Voltage: 16VMaximum Current: 56AMaximum Speed: 50000No Load Current: 2.9ANumber of Motor Poles: 4Internal Resistance (Ω): 0.0095Motor Length: Approx. 50mm / 2.0in (Without Shaft)Motor Diameter: Approx. 36mm / 1.4inShaft Diameter: Approx. 3.175mm / 0.13inShaft Length: Approx. 15mm / 0.6inGold Plated Plug: Approx. 4.0mm / 0.16inSupersonic 45A ESC:Continuous Current: 45AInstantaneous Current: 240AMotor Type: Brushless MotorInternal Resistance: 0.0014ohmBattery: on road car: 2-3S Lithium Battery / 4-9S NiMH off -road/buggy/Monster : 2sLipo or 6 cells NiMHBEC Output: 5.8V/5V (Switching Mode)Product Size: Approx. 50x35x34mm / 2.0x1.38x1.34inPlug Type: XT60 to T Plug ConnectorApplication: for 1/10 Remote Control Car (eg: for Tamiya / for Traxxas)Package List:1 x 3650 Brushless Motor1 x 45A ESC1 x XT60 to T Plug Connector4 x Screw2 x ManualNote:1.Due to manual measurement, please allow an error of 1-3mm. Thanks!2.Please unload the cooling fan water before using this ESC; clean and wipe dry as soon as possible after use to prevent the connector from rusting.3.We are the Surpass Hobby factory , genuine Surpass Hobby RC products,exquisite workmanship & durable. buy with confidence, perfect after-sales service, manufacturer directly supply products.

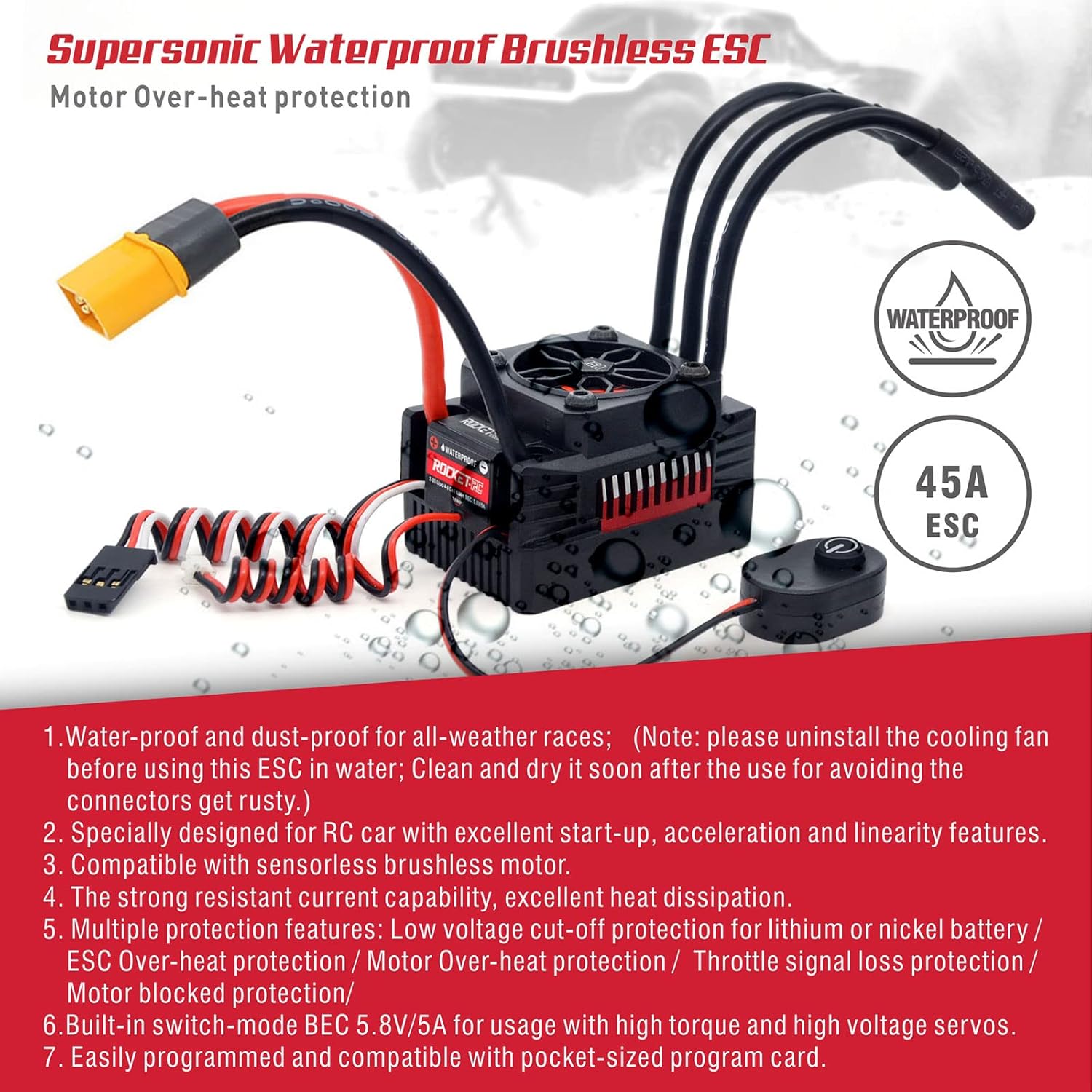

• High protection Functions: all-weather operation The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
• Capacitor Thermal Protection: High quality ruby capacitors,capacitor thermal protection is designed and implemented into the ESC to effectively prevent capacitors from exploding and causing irreversible damages to the ESC due to overloading.
• Profession:Powerful built-in BEC The ESC has a built-in BEC with a continuous current of 6A. The output voltages are switchable between 6V, 7.4V 8.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.
• Efficent Cooling System: Adopt lnfineon mosfet chip,the integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat. These results an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state
• Stability and Reliability: Adopt lnfineon mosfet chip,Intelligent freewheeling technology, greatly improved performance The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.
