Dual Electric Fan Wiring Kit, 12VDC Electric Cooling Fan Relay Thermostat Kit, Fit for 10 12 14 16 Inch Fans, Includes 40A Relay, Wiring Harness, Thermostat,

Item Type: Dual Electric Fan Wiring Kit Material: Plastic + Metal Voltage: 12VDC Temperature: About 185F° ON, 175F° OFF Fitment: product, suitable for 10, 12, 14, and 16 inch cooling fans If you want to turn on fan when AC is activated, you will need an additional relay kit and follow steps below: 1. Connect red wire of AC relay to gray wire of original fan relay harness ( unit) 2. Connect gray wire and brown wire of AC relay to ground 3. Connect black wire of AC relay to 12V+ of AC compressor wire Package List： 1 x Instruction Manual 2 x 40A Relay with Wiring Harness 1 x Thermostat 2 x 20 Amp 8 x Terminal 4 x Connector Note: 1. thermostat must be grounded to through threads to function, and must be grounded as well. 2. If you plan to install a spec cooling fan, you can crimp or solder larger wires onto it. 14AWG wire 15( amps) is not thick enough to handle amp currents.

• COMPATIBILITY: This dual electric fan wiring kit is designed to work seamlessly with 10, 12, 14, and 16inch- cooling fans, making it a versatile solution for various vehicle . kit includes everything you need for a hasslefree- installation, ensuring your cooling system operates efficiently.
• HIGHPERFORMANCE- RELAY: Equipped with a robust 40A relay, this wiring kit can handle current loads, providing performance for your dual cooling fans. included thermostat your fans activate at 185F and turn off at 175F, maintaining optimal temperature.

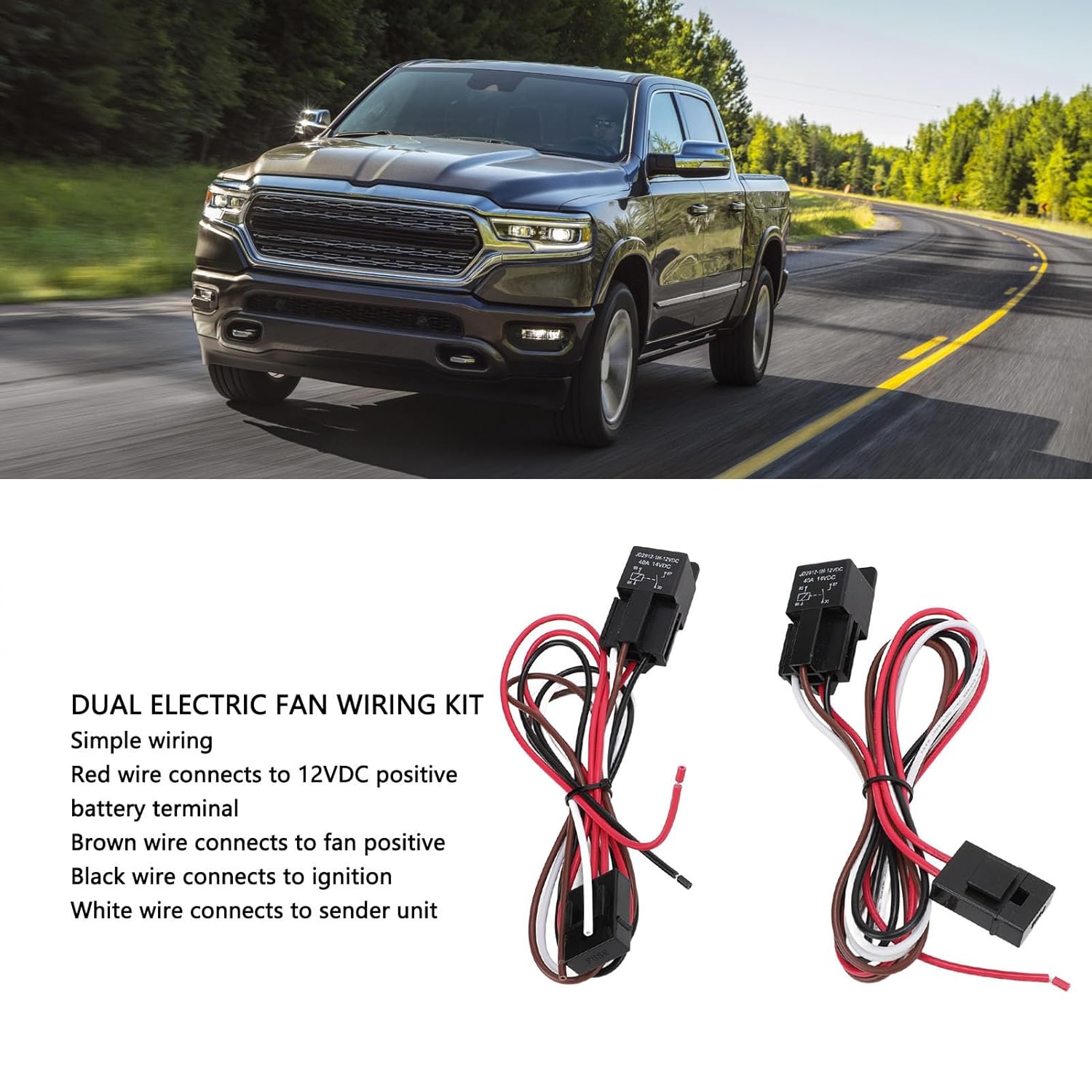

• INSTALLATION: With a simple wiring diagram and all necessary components included, this kit makes installing your dual cooling fans a breeze. red wire connects to 12VDC positive battery terminal, brown wire to fan positive, black wire to ignition, and white wire to sender unit.
• CONSTRUCTION: Made from highquality- plastic and metal components, this wiring kit is built to last. thermostat features OEstyle- mounting, allowing it to be installed on cylinder head or any jacket for accurate temperature monitoring.
• COMPLETE PACKAGE: This electric cooling fan thermostat kit comes with 2 relays, a wiring harness, thermostat , 2 , 8 terminals, and 4 connectors. Whether youre' upgrading your cooling system or replacing old components, this kit has everything you need for a installation.
