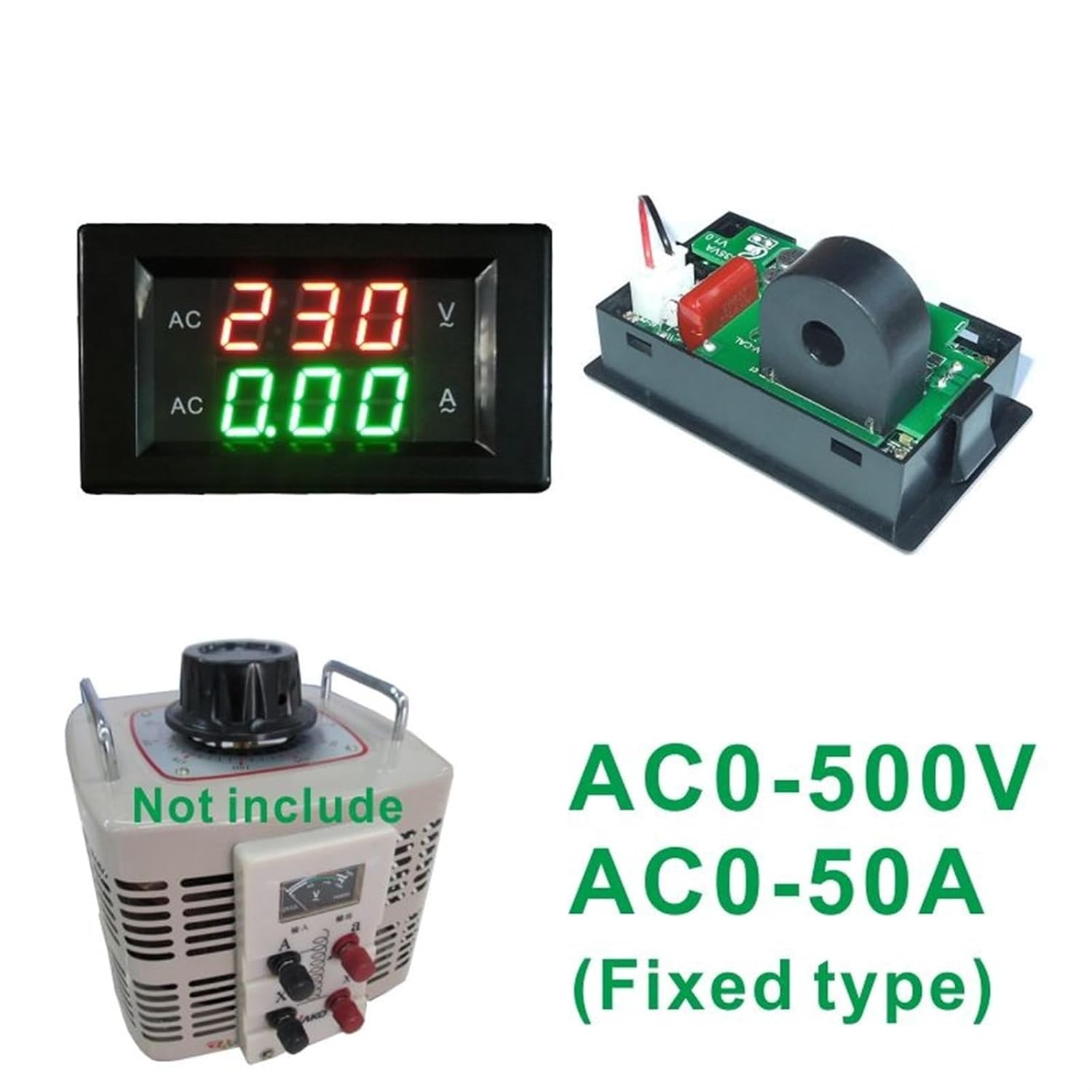

AC 0-500V 50A LED Digital Voltmeter Ammeter Voltage Current Meter for Single Phase Fixed CT Volt Ampere Gauge Monitor(White Cover)

AmmetersAttention: 1.The meter can only be used to measure 50/60Hz sine wave circuit, it will be damaged when use to measure square wave, output of inverter and correction sine wave. 2.The CT of meter is just connected to the CT socket, not need to connect to ground or device case. 3.Please firstly connect the current with meter, then connect the meter with voltage test wire. After that, don't touch any part of the back to avoid the electric shock hazard. 4.Misconnection between voltage input and current will lead damage to the meter. Please make sure the voltage and current are connected correct. 5. If your device is 100W or less than 100W, it is recommended to use 10A-current range. 6.When the test voltage is less than 18V, the Voltmeter is shown as "0". 7.The meter is suitable for AC Single Phase (voltage regulator) Only. Specification: Installation:Embedded installation Accuracy:1% ± 2 digits <;0.2VA Measurement speed:About 2 times per second View size(approx):48 * 24.5mm Outline size(approx):70*40*30mm Mounting dimensions(approx):68*38mm CT wire length(approx):100mm(Except 1000A and fixed type) Color: Black cover/White cover Features: AC Voltage and Current simultaneously by LED display. Display type: LED,red for voltage,green for current. Low power consumption. With a back cover, safe to use Including one independent small precise current (CT), you can lengthen the cable. Easy measurement, just connect to power and lead the wire through the current (CT). Wide measurement voltage and current range.
